The Isetta Saga, Chapter 15: Documenting the Body Restoration Progress

Jody Fitzpatrick, proprietor of “The Shop” in Maplewood NJ, was my choice to oversee the body restoration of the Isetta for many reasons: he was personally recommended, the business was nearby my residence, his pricing was fair, we had a mutual understanding of what “done” looked like, and his estimated timeframe was reasonable. Another reason is that Jody assured me that I could visit and observe the progress whenever I desired (sort of like conjugal visits for the incarcerated).

Having read more than one “restoration shop horror story” (the car gets pushed to the back, 6 months pass with no progress, the shop demands more upfront money, they lose your car keys, or worst, they close the business and lock the doors with your car inside), having visitation rights was refreshing.

So visit I did.

Three times during that hot July of 1995, I stopped in to have a peek and to snap a few snaps. Jody was always very accommodating and genuinely happy to see me, and gave me free rein to walk around my car and chat up the crew doing the actual labor.

During the first visit, employees were using homemade scrapers to remove the paint. They had decided against chemical dipping or media blasting, fearful of inflicting further damage. They also hammered out any dents and other rough spots, in preparation for some minor welding and an eventual skim coat of putty in spots. (From my own research, I had come to learn that any talk of body repair that doesn’t involve some small use of plastic filler is fantasy.)

THE SHELL IN THE PROCESS OF PAINT BEING REMOVED:

During this visit, Jody and I also finalized the choice of paint color. There was no known “official 1957 BMW Isetta paint code chart” we could refer to, so we did the next best thing. Sampling the unfaded paint we found under the BMW roundel on the door, we matched that to the closest shade among the modern paint code charts in Jody’s possession. We both agreed that the 1995 Ford Mustang shade of “Performance Red” was it. Jody stressed another advantage: should the car need touch-up or repair in the future, the correct paint would be readily available.

Just a week later, I saw the body with all the original paint gone, and the metal work beginning. I had given Jody a recommendation from John Jensen’s Isetta Restoration book for a method to reinforce the rearmost body panel at the tail lights and rear bumper. This section of the shell was not directly attached to the chassis, and was a known weak spot. Jody stated he would use the printed suggestion to add some additional metal in places.

HAND-SANDING THE FILLER AND THE GUIDE COAT:

During this 2nd visit, I pointed out a number of drilled holes which needed to be filled. These included where the dealer-installed mud flaps and luggage rack had been, neither of which were to be reinstalled. (I would later discover one which I missed, requiring the purchase of a somewhat pricey accessory in order to cover it!) Jody’s suggestion of grinding down the visible factory welds at the body panel joints was rejected by me, as I had every desire to keep to an original look.

Like a proud papa, I posed alongside the work-in-progress:

The third visit found the body in full primer. With the metal work done and its flanks as smooth as new, it was not difficult to visualize a freshly painted body shell. Jody had the door and all the other exterior pieces at The Shop, but he also generously offered to hang and align the door for me, something that was not part of our initial negotiation. I brought the freshly-plated door hinges with me so that he could do just that.

THE BODY IN FULL PRIMER, JUST PRIOR TO COLOR COAT:

Perhaps the most exciting aspect was that the work was closely adhering to the originally estimated timeframe. Jody said that it might take a week longer than he hoped, but everything looked to be on track for a final pick-up by the end of July. And there were no “pricing surprises” either. Jody had gotten a $2,000 down payment upon drop-off, and he said that all I owed him at completion was the $2,000 balance plus NJ state sales tax.

A few days later I got the call. “It’s ready whenever you are.” That Saturday, I hooked up the trailer to the car and grabbed my checkbook. We were on our way.



All photographs copyright © 2019 Richard A. Reina. Photos may not be copied or reproduced without express written permission.

The Isetta Saga, Chapter 13: The Quest for a Body Shop, or, Third Time’s the Charm

Welcome back to the Isetta Saga!

In Chapter 12, it was early spring 1995, and the blog post contained video evidence which proved that the “thumper”, as one-cylinder engines are sometimes called, would start and run. You could say that this completed the mechanical portion of the restoration. Of course, there were “mechanical” elements to be addressed once the body and chassis were reunited, such as pedal and shifter linkages, gauges, lights, and so on, but, the running chassis was essentially done.

Now it was crunch time. Now, a fear crept into me because I was about to embark on a path over which I would have much less control. I am a technician, an automotive repairman, by trade. The nuts and bolts were, if not easy, at least resolvable by me. As I looked at the forlorn Isetta body, I was reminded of how little I knew about body and paint work. There was also an element of procrastination in play here. I could have sought out body estimates in 1994. However, it was easier to tell myself to push forward with the chassis work, and allow the bodywork to wait until it was absolutely necessary to move on it. That time was now.



Left front: lots of scars along side



Right front: door is OK, but strange circular gash above engine door opening

As had been my habit for this entire project, I grabbed my trusty Nikon EM, loaded it with a fresh roll of Kodak ISO 100 (or 200) film, and photographed all the details of the red body in its “before” state. This was done both to document its current condition as well as to provide a guide during reassembly. The body was still complete, with door, glass, sunroof, lights, wiring harness, and interior panels in place. There was no sense in disassembling any of it until I understood the next steps, which would only happen after speaking with several body shops.



Left rear: metal is split at wheel well



Right rear: rear bumpers have left gaping holes in sheet metal

The body was loaded onto my landscape trailer, and the trailer was hooked to the back of my Volvo wagon. Off I went to visit two different restoration facilities in northern New Jersey. As both these shops are still in business, and as I have nothing to gain by presenting potentially disparaging remarks about them in this public forum, I shall refer to them as “Shop A” and “Shop B”.

Interior left front showing shifter & linkage, wiring, factory sound insulation (which was to be removed)



Interior right front: VIN plate, but rust along bottom of wheel well

Shop A is a first-class enterprise with a stellar reputation in the hobby. They are known for their award-winning vehicles, and even market their own line of automotive paint. The patriarch of the business greeted me personally, and invited me to sit with him so we could discuss my progress and my intentions.

I told him that I had essentially completed the drivetrain, and wanted a shop to take on only the body shell. “You have done an excellent job managing your own restoration”, he said to me, and I wasn’t sure if the comment was a compliment, or if he regretted that I hadn’t handed over the whole stinkin’ pile of parts for him to sort out. He continued: “We can restore this body, certainly can. Our process will be, you leave it with us while we do our research and preliminary work, and we will send you an itemized bill on a monthly basis”.

My next question was obvious, or so I thought: “What will be the total cost of the body and paint work?” He replied “Oh, we have no way of knowing that. Besides, that’s not how we work. As I said, we will perform a certain amount of work every month and bill you accordingly. You are also welcome to stop by and see the progress first-hand”. I told him that I would think about it. The walk back to my car wasn’t complete before I had concluded my thinking about it. This was the traditional model of automotive restoration. The owner trusts the restoration shop to proceed at a fair pace, and pays the bills with no clear end date in sight. This shop was not getting my business.



With seat out, note spare tire witness mark, shift linkage

Shop B was introduced to me when its proprietor visited my office for an evening’s “hobbyists’ gathering”. He was fairly new to the business, and wanted to introduce himself to a wider audience. He spoke in a friendly and down-to-earth manner, and explained that his shop was the restoration place of choice for the common man. At the end of his presentation, I approached him and asked about paying a visit. A short time later, I trailered the red body out to him for his inspection, and he promised to get back to me ASAP.

This was 1995, so we used fax as a speedy means of communication. The first page of the fax was a cover sheet, and the second page had a detailed line-by-line estimate for metal work, fabrication, priming, sanding, and painting. I knew I was in trouble reading the first line of his cover page: “Dear Rich, I hope you’re sitting down!” His estimate for total parts and labor? $11,150. That only meant I needed to keep looking.

This is behind passenger seat. Removable panel is for spark plug access.



Parcel shelf with factory interior panel still in place.

A work colleague, friend, and all-around great fellow hobbyist Dennis Nash was someone I sought out for advice. Dennis said that he knew someone through the Rolls-Royce Owners Club who ran a collision shop but also fit in a fair amount of restoration work. He was in Maplewood, about a 20 minute drive from my house, and much closer than either Shop A or Shop B. The person’s name was Jody Fitzgerald, and the name of this business was The Shop.

I called. Jody answered, “This is …. The Shop”. (This is how he always answered the phone, with a purposeful delay between “this is” and “The Shop”.) We had a pleasant initial conversation, and he invited me to visit with body in tow. It didn’t take him long to look it over and for him to tell me that this was something he could handle. He made himself very clear that there were certain things he would, and would not, do. He said that he would:

  • Expect me to deliver the body with glass and soundproofing removed.
  • Paint the body in a single-stage urethane, and color-sand and polish the exterior.
  • Paint the interior to match, but not color-sand or polish it.
  • NOT paint the underside of the body. (He suggested that I paint it before bringing it back to him.)
  • Complete all the body and paint work in an approximate 3-4 week time period.

Jody said that the total cost in material and labor would be $4,000. That was a very acceptable number to me. Before we signed any papers, Jody said he had one more item of importance to discuss with me:

“I will take on this job, which will cost you $4,000, only if you verbally assure me that you understand this cost exceeds the total value of the car.”

In retrospect, I don’t blame him one bit for wanting to ensure that I understood the price/value relationship. We both knew that good, but not perfect, running and driving Isettas were available for around $3,500 in 1995. There was too much emotional attachment in this project for me, so I was more than willing to spend what I believed was a fair price for the body shell restoration. Jody simply didn’t want to start this job and have me remorsefully abandon the car with him.

I rushed home to begin the disassembly so that I could deliver the shell to Jody. It was June of 1995. There was no time to waste.

All photographs copyright © 2018 Richard A. Reina. Photos may not be copied or reproduced without express written permission.

Stay tuned for the next chapter in the Isetta Saga, as the shell is prepared for delivery to The Shop.



The Isetta Saga, Chapter 12: The Engine Starts for the First Time

Dear Readers,

Those of you who have followed this Isetta Saga have endured 11 chapters of a story that has covered parts of three decades. You’ve read about the initial discovery of these tiny cars, first in a magazine ad, then in a Vermont barn. You learned that I’m very good at letting a few years (like, ten) go by without any work transpiring. You saw that getting my own garage gave me the work space I longed for. My pictures illustrated progress with dismantling and restoring major components such as the chassis, engine, and rear axle.

At what point, dear readers, did you ask yourselves:

WHEN IS THIS THING GOING TO RESEMBLE A CAR?

Can’t say as I blame you. If you didn’t know better (and I have yet to prove that you will), you might conclude that the freshly-painted engine is destined for a museum display cabinet. And “rolling chassis”? Please. The cynics out there (I know who you are) are thinking “just throw a sheet of plywood on it and use it as a garden cart”.

But are we any closer to actually taking it for a drive? Let’s recap the two most recent chapters. Chapter 10 included the story of the combo starter-generator known as the Dynastart. Its renewed wiring was complete, even if it was yet to be reinstalled onto the crank nose. And Chapter 11 displayed photos of a Dynastart-less engine bolted to the chassis, with a complete transmission and final drive axle right behind it. The next steps were to install the Dynastart, obtain a voltage regulator and battery, and pick up a quart of fuel at the local gas station. Oh, and then try to start it.

Any book about the internal combustion engine will tell you that provided your internals are mechanically sound, only three things are needed to start an engine: air, fuel, and spark.

I made a checklist.

  • Air: check. (My backyard had an abundance of it, and there were no obstructions in front of the carb.)
  • Fuel: check. (The Isetta has no fuel pump. Someone just needed to hold a funnel higher than the carb, and pour fuel into it while a hose ran to the carb.)
  • Spark: check. (If I was correctly reading John Jensen’s Isetta Restoration, touching certain wires from the Dynastart and the voltage regulator to a 12 volt source would crank the engine and deliver spark to the plug.)



Heavy red cable feeds Dynastart; voltage regulator is temporarily clamped to chassis



On Sunday, March 26, 1995, I rolled the chassis out of the garage and into the backyard. Enlisting the help of my friend John M and his 10-year-old son Nick, we poured fuel into the funnel, and touched wires to the battery.

John not only lent the services of his son, perched as he was on a step stool for this grand experiment; John also had a video camera set up, ready to record the scene live as it happened.

This long-hidden VHS tape was recently rediscovered and transferred to DVD. Please click on the YouTube link below so that you may verify the results with your own eyes:

I assure you that these moments were not rehearsed. Once I remembered to supply sufficient fuel to the carburetor, the engine actually started on the first try. The fist-pumping at the end was a spontaneous display of exuberance, a reflexive reaction to the sheer joy of the moment. The feeling was indescribable; it certainly energized me to keep pushing myself to complete the car in the few short months I had remaining to meet my own self-imposed deadline.



All photographs copyright © 2018 Richard A. Reina. Photos may not be copied or reproduced without express written permission.

The next chapter in the Isetta Saga starts the hunt for an affordable repair shop to take on the body and paint restoration. Note I said “affordable”.







The Isetta Saga, Chapter 11: A Wild Goose Chase, but the Engine’s Back Where It Belongs

In Chapter 10, the rolling chassis debuted to the world. In Chapter 11, that chassis gets the rest of its drivetrain reunited with it, but not before a very long drive turns fruitless.

The year 1995 had dawned. Staring me in the face was the sign I created and hung in my workshop: “The Isetta Will Drive in ’95”. Could this be possible? Theoretically, I had until 11:59 p.m. on December 31, but practically, I knew that it needed to happen before winter set in.

Never mind the still-unanswered dilemma about body and paint. There were two more immediate challenges:

  1. The restoration had reached the point of discovering that many small pieces were completely missing. I had no ignition switch, headlight switches (on/off and low/high beam), turn signal switch, motor mount brackets, or hub caps. Some of the pieces I did have were in such poor repair that it would help if I could find other used ones in better condition.
  2. My completed engine and transmission were not yet installed in the restored chassis. This was a priority because once installed, I needed to prove that the engine would start and run. Should there be a failure there, I wanted enough time to correct whatever needed correcting.



The Old Cars Weekly ad, complete with note from Bob

The solution to Challenge #1 came to me via interoffice mail. A fellow-fanatic colleague, Bob McCown, sent me a clipping from Old Cars Weekly magazine. Either I no longer subscribed, or I had missed the ad. Someone in Pennsylvania had a “complete, solid” Isetta PLUS a rolling parts car, for $1,000. I called the number, and the conversation went something like this:

ME: Hi. About the complete car you’re selling, what would it take for it to run?
SELLER: A battery.
ME: And the rolling parts car, is it complete?
SELLER: It has no drivetrain, but the rest of it is there.

This sounded like a deal to me. The plan was already decided: I’d buy both cars, strip them, keep what I needed, and sell off what I didn’t. What the heck, I’d been doing exactly that for the past 5 years!

I called my good friend Steve M, who was always up for an adventure. Checking a map (no, not Google Maps, that hadn’t been invented yet), I found the town outside Pittsburgh, about a 6 hour drive one-way. Steve and I agreed to a Saturday 6 a.m. departure from my house. I hooked up the open landscape trailer (a recent purchase made for express purpose of moving Isetta bodies) to my Volvo 850 wagon, and we were off.

Car & trailer (here with body in tow) made 12-hour round trip to PA

Steve said: “You know, showing up with an empty trailer is bad. He’ll conclude that you’re buying his cars no matter what. I suggest that you find a spot about a mile from his house and park the trailer.” I would have none of it. I retorted “Look, as excited as I am about these cars, if I don’t want them, I’m not buying them.”

We arrived at the seller’s house around noon. The property was a large farm, with numerous outbuildings. About 50 yards away I spotted a canvas cover draped over the unmistakable silhouette of an Isetta. We didn’t see a soul, so we headed toward it. Peeking under the cover, the Isetta was quite rough. “This must be the rolling parts car” I told myself.

“John” the seller emerged from one of the buildings. Spotting the NJ plate, he correctly presumed that I was the guy who called.

ME: So this must be the rolling parts car.
JOHN: No, that’s the better of the two.

We peeled the cover completely back. The sunroof was missing. The interior was gutted. The engine was on the floor of the car.

ME: You told me on the phone that the better car only needed a battery to run.
JOHN: Well, that engine would run once it’s reinstalled. At least it’s there.
ME: Oh boy. Since we’re here, let’s look at the rolling parts car.

We followed him to another part of the farm. The roller was inside. The roller had been in a fire. Everything consumable was gone: paint, glass, plastic. There was sheetmetal, but it was impossible to tell what color the car had been. The roller was worth more as scrap metal.

I was too disappointed to be angry. There was no way I was purchasing these two Isettas from him. If he had offered them for free I would have declined, as neither car had the parts I needed. In a situation like this, the best way to get even is to walk away. I said to John, “I’m not buying these”, shook his hand, and we got back into my car. Steve and I had a nice dinner somewhere in PA. So much for that idea.

Challenge #2 was more within my control. Bolting major mechanical subassemblies to the chassis with the body removed was quite straightforward, except for the missing components. I had no motor mount brackets, and they weren’t being reproduced, so one of my local suppliers was able to fulfill an order for a pre-owned set. The engine, complete with cylinder head, carburetor, and clutch, went in first. Next, the transmission was installed.

Chassis with engine and transmission in place



From left rear: both Giubos are visible, as is carb. Dynastart not yet reinstalled.



The world’s shortest driveshaft, freshly painted and with a Giubo at each end, was positioned between the trans output and rear axle input. Two issues here required focus:

One, the Giubo bolts were special items with very thin heads. The clearance between the bolt head and gearbox case was so small that standard-sized bolts would rub against the case, gouging it. This was written about repeatedly in the club newsletters.

Two, the flanges on either side of the driveshaft were not aligned, and again, newsletter articles warned novices NOT to align them. Something about the way the entire drivetrain moved required the flanges to be ever-so-slightly offset, with the flexible Giubos correcting the difference.

From left rear: note carb fuel bowl



From this angle: note oil filler tube, upper motor mounts, trans linkage. Left Giubo is quite twisted.



The drivetrain was installed. I resigned myself to being “nickel-and-dimed” from local suppliers for any further missing parts. Spring was on its way. Next, I would attempt to start the engine, then really get serious about finding a body shop.

Exhaust manifold not installed yet. Adjustable plate on final drive takes up chain slack.



Did I mention that I didn’t have a title to the car?



Next time in the Isetta Saga: As taught in class, an engine only needs 3 things to run: air, fuel, and spark. Is that still true if you only have one cylinder?

All photographs copyright © 2018 Richard A. Reina. Photos may not be copied or reproduced without express written permission.



FUN FACT OF THE WEEK:

Giubo joints have their own Wikipedia page. The name “Giubo” (pronounced JOO-boh) is derived from the first three letters of “giunto” (Italian for “joint”) and the first two letters of the inventor’s last name, Antonio Boschi. “Giubo” is frequently misspelled as “guibo”, and then mispronounced as “guEE-bo”. The coupling was first used on the Alfa Romeo 1900 of the early 1950s, and was used on many BMW cars throughout the second half of the 20th century.



The Isetta Saga, Chapter 10: The Rolling Chassis Debut

In Chapter 9, the transmission and final drive got overhauled, and the chain-driven axle was ready to be reattached to the chassis. In Chapter 10, the restored rolling chassis finally sees the light of day.

Smack in the middle of calendar year 1994, elbow-deep in my restoration of this fine German bubble car, I was at a “good news / bad news” crossroads. The good news: much mechanical progress had been made. One engine, minus a cylinder head, was complete. With the transmission and enclosed-chain rear axle both restored, the drivetrain was essentially done. The chassis, currently on its front tires only, was very close to rolling on all four wheels and tires.

But the bad news, like a devil on my shoulder, would lean into my ear and whisper: “You’re not going to get this done”. I still had parts procurement issues. In spite of my dealing with multiple parts suppliers, no one vendor had everything I needed, and there were still some parts which no one seemed to have. My commitment to the rebuild of a 2nd engine was detracting me from progress on my own car. Work to be sent out, in this case the cylinder head rebuild, left me stymied, as I was having difficulty finding a machine shop willing to take on an Isetta valve job. I continued to discover that I was missing parts (remember that I did not disassemble these cars), which had me on the hunt for good used ones. I had not even begun looking into a shop for the body and paint work. Yet I continued to brag how “the Isetta will drive in ‘95”, and 1995 was next year.

Let’s pause for a moment and reflect back, with 25 years of hindsight. Why was I doing this? What were the motivating factors? The truth is that there was nothing rational about the time, money, and effort being expended to restore this microcar which most people never heard of, and which had little monetary value in the collector car market. This was a labor of love, driven by these factors:

  • Having failed once at an attempt to sell the car, there was little choice but to make something out of the pile of parts.
  • Fifteen years after purchasing the car, I felt an obligation to do something with it.
  • It was a pipe dream to prove that I could take a non-running car and restore it.
  • Having heard horror stories about stalled projects, I was determined to show that it was possible to finish one.
  • I had the tools, the space, and the mechanical knowledge, giving me the confidence to tackle the work.

This is not to say my time was otherwise not occupied. My career with Volvo was in full swing, and it included regular domestic and international travel. My home and family life were full of commitments. I continued to perform on the drum kit in various bands, although not to the extent I had during the previous decade.

Primarily, the Isetta restoration was my way of immersing myself in the old car hobby. Both the ’57 Ford and ’67 Dart were gone. Aside from the Isetta, my only other car was my daily driver, a company-leased Volvo. There was no room, financially or physically, for another collector car. What drove me? The drive came from the knowledge that a finished, drivable Isetta was my ticket into the world of collector car events.

In an earlier post on the Isetta Saga, I mentioned that one cannot embark on these kinds of journeys alone. Working for an automobile company as I did meant that I was surrounded by fellow enthusiasts. In countless ways, they provided advice, assistance, and direction. One of my colleagues, Galen Royer, was a motorcycle guy, which I was not. Speaking to him one day, he mentioned a BMW motorcycle shop near his home. C & S BMW was in Chester NY, in Orange County. Although I had contacted other BMW bike shops (the one-cylinder Isetta engine is motorcycle-based), no one had been willing to take on the head work. From C & S I finally got a positive response. I dropped off one cylinder head with them, and they performed a complete overhaul, including installation of new valve guides, and cutting of valve seats. Finally, I could complete the reassembly of one engine.

A Polaroid of the heads prior to the machine work



The bill from C&S; a large expense compared to what I had been spending



One last shot of piston before head covers it

Turning my attention back to the chassis, the restoration of the rear axle along with its various attachment points brought me that much closer to a very important goal: the completion of a chassis rolling on its own four wheels. That goal was reached early in 1994, and I celebrated that accomplishment by throwing a party. Why not?

With rope power, the rolling chassis awaits its debut



It’s not a party without champagne

The gathering of friends to raise a glass in toast to a milestone was not intended as an egotistical, “look what I did” exercise in chest-beating. I thought of it as quite the opposite, actually. The small cadre of friends who were invited to the Rolling Chassis Debut all had been playing supporting roles in the restoration. Chris, Steve H, and Linda were of great assistance in procuring parts. Steve M and John had both been to the house multiple times when I needed an extra pair of hands.



Great friends raise a glass…. Judie, Chris, and Linda have passed on….

It was also important that I not take myself too seriously, as serious as I was about doing the highest quality work I could, and getting it done in a timely fashion. It was still “just a car”, and this was supposed to be fun. By having a party, I was letting you in on the secret: this was a lark, an Isetta for heaven’s sake! I wanted you to laugh with me. If that also meant laughing AT me, well, that was OK too. Celebrating a turning point held the promise of future celebrations at future turning points. Let’s pop a few corks, tell a few stories, and hope that you’ll keep helping me as I keep pushing myself to finish the darn thing.

The chassis finally is returned to rolling on 4 wheels



As a reminder, this is how it looked in 1990



From this angle, rear chain drive assembly is shown; no engine or trans yet



Front shock towers were black, now red; front and rear tread difference obvious here

The next big turning point looked like it would be the installation of the engine and transmission onto the chassis. But we were not quite there yet. There were a few subassemblies for the engine, chassis, and interior which needed work:

Brakes

Like almost all cars from the 1950s, the Isetta used drum brakes front and rear. Compared to normal cars, there was a difference: the lack of a differential meant that the two rear wheels, mounted on a solid axle, were not free to spin independently of each other. In execution, only one rear brake was needed, so viola, the Isetta had a total of three drum brakes.

The brake rebuild process was not without its challenge. All the wheel cylinders were frozen solid, and dislodging the pistons meant days of soaking in coffee cans full of Liquid Wrench. Even then, the pistons were still removed via destruction. The cylinders themselves were salvageable, and pistons and shoes were available from several of my local suppliers.

Brake line formation; new master cylinder is in place

Brake lines, on the other hand, were not. The only solution was to purchase metric brake lines, which I cut to length and bent to form using a tubing bender. The flaring of the ends required borrowing an ISO bubble flare tool. (It was a huge advantage to complete with work on the body-less chassis. I cannot imagine doing this with the body in place.) Various articles recommended using VW brake hoses for the front, and that’s exactly what I did.

My “before” photos came in very handy for the forming of new brake lines

Finally, the hunt was on for a new master cylinder, as the ones I had looked like they had been stored in New York Harbor. Mr. Krause in Emmaus delivered on that front, and it was a case of “pay whatever the asking price is”, as at that time, no one else had new Isetta master cylinders for sale.

Front brake shoes and wheel cylinder shown with drum removed



Steering wheel & column

My steering wheel had minimal cracks, and based on some discussions I had with steering wheel restoration companies at Carlisle, I wasn’t about to pay what they wanted to restore a wheel. It looked to me that a complete sanding and recoating of the wheel would get me to where I wanted to be with it.

Steering wheel as found, with worn factory coating

I had read that store-bought epoxy appliance paint, intended to refinish your kitchen fridge or oven, worked quite well on automotive interior items which are subject to handling and wear. Popping into my local Home Depot, I found spray paint in a nice almond shade, and committed to using it on the steering wheel as well as items like the light switch, shift knob, and interior door handle.

After sanding; wheel was overall in decent shape

The steering wheel was hand-sanded to remove all traces of existing paint, then given a good cleaning. With the rattle can, the intention was to apply multiple coats as lightly as possible. If I could get the wheel to rotate while spraying it, there would be no chance of runs. Using an old piece of outdoor furniture and a drumstick, I mounted the wheel so that I could spin it and spray it. It probably got four or five coats of paint this way, and to me it looked as good as new.

Restorations drive you to be creative and make your own tools

I was unsure if the steering column from the factory was painted silver or the same off-white as the steering wheel. In the end, I decided that the almond color would look better, so that‘s what it got. The u-joint at the bottom of the column was made of brass, and it polished up so brightly that it would have been a shame to paint it, so I didn’t. Instead, I sprayed it with a clear lacquer for protection.

The polished brass steering column u-joint; note BMW roundel stamped into surface



Pedals

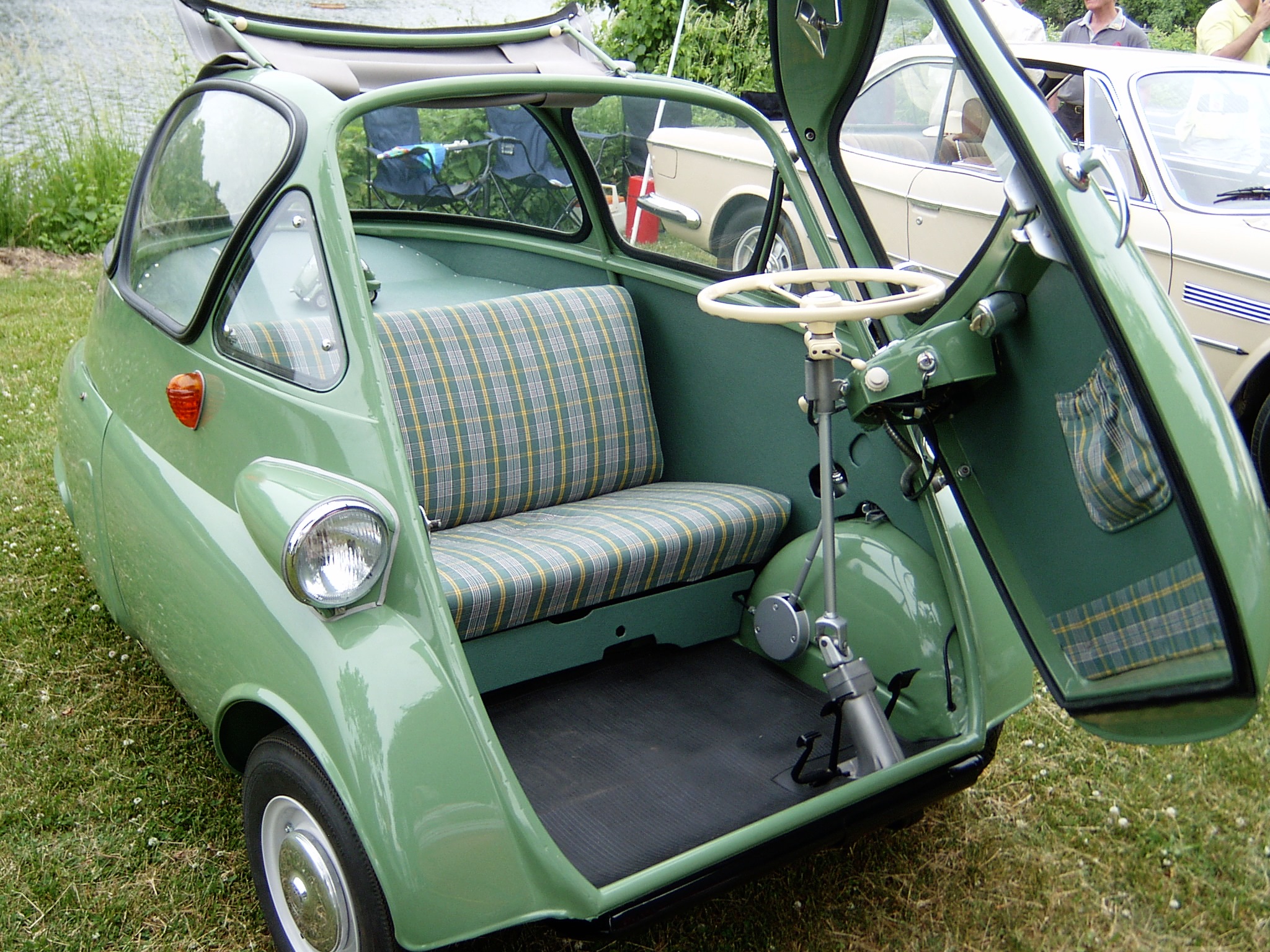

The Isetta pedal setup is conventional: from left to right, there are the clutch, brake, and gas pedals. The steering column is located directly between the clutch and brake pedals, though, so any thought of left-foot braking, much less heel-and-toeing, must be dismissed. What do you think, this is a race car?

The pedal assembly before cleaning; note tube for steering column

The assembly came apart easily enough, and the metal pedals were cleaned and painted, just like so many other parts. Knowing that the pedal surfaces would eventually show some wear, I applied extra coats of paint to them, and decided that if I drove the car enough to create evidence of use on the pedals, I’d just call it “patina”.

Clean pedals, ready for paint



Dynastart

Instead of a separate starter and generator, the Isetta (and other contemporaneous small cars) used a combined starter/generator called a Dynastart. The combo unit mounted directly on the nose of the crankshaft. A heavy B+ lead went from the battery, to the voltage regulator, then to the starter post on the Dynastart. Turning the ignition key to “start” energized the unit to spin the armature. Once the engine started, it switched to charging mode, and along with regulator, fed DC voltage to the battery.

The Dynastart in “as found” condition

Mine looked like some sparrows had spent several seasons nesting in its confines. The internal magnets, wrapped in electrical tape, showed signs of fraying. Thankfully, John Jensen in his Isetta Restoration book provided explicit instructions for rebuilding the Dynastart. I took on the task, but not until I purchased supplies of various color wiring and cloth-covered tape.

The trickiest part of the job was removing the magnets, and Jensen warned about that. The only way they could be removed was by using a hammer-driven impact tool. Compounding the difficulty, the magnets were held in place with slotted screws, which could be easily stripped. Eventually, it all came apart. All the magnets were retaped, all the wires were replaced, and it all looked visually pleasing. Whether it would start and charge remained to be seen.

The bare shell, to be cleaned and reassembled



Done, and awaiting mounting to engine. Note tags on wiring.

The completed Dynastart meant that I could almost hear that thump-thump-thump of that one-cylinder vertical at idle. That moment would need to wait. With 1994 drawing to a close, the year gave me a final chance to take my car, as it was, to a show:

TOY DAY

My employer, Volvo Cars of North America, had an irregular annual tradition called Toy Day. It was a chance for employees who were auto buffs to display their toys at work. A Toy Day was held in October of 1994, and I was determined to make a presentation, even if I were the only one who wasn’t going to drive his toy to work.

Measuring the back of my Volvo 245, I saw that the rolling chassis would indeed fit in the rear of Sweden’s finest wagon (2nd row seats folded, of course). I maneuvered the chassis in there, and included a folding card table so that I could display my photo album and some Isetta literature. I managed to procure a parking spot between two other fine German automobiles, a Beetle convertible and a Porsche 911. (Re-read above about “willingness to allow others to laugh at you”.) My good friend John felt it was his obligation to effect his best salesperson pose for this photograph:

First “public display”. Along with John, two Swedish engineers steal ideas for future Volvos

Events like this only motivated me to keep going. Next, I would prove that the engine would run. Then, I could turn my attention to the body. Not for the first time, I asked myself, “how difficult could this be?”

Next time in the Isetta Saga: 1995 arrives. I said that “The Isetta Will Drive in ’95”. But will it? The year starts auspiciously, as I explore a risky way to purchase all the parts I’m still missing.

All photographs copyright © 2018 Richard A. Reina. Photos may not be copied or reproduced without express written permission.



FUN FACT OF THE WEEK:

What’s old is new again: Dynastart, technology now owned by German drivetrain manufacturer ZF, is being marketed by them as a practical, space-and weight-saving solution for hybrids.

The Isetta Saga, Chapter 9: Overhauling the Car’s Compact Drivetrain

In Chapter 8, the front half of the chassis got back on its feet, er, wheels, while patiently waiting for some engine machine work to be completed. In Chapter 9 below, we make serious progress on one engine, while also making serious progress on the gearbox and rear axle.

We last visited our engine progress in Chapter 7, which concluded with me leaving one crankshaft / connecting rod assembly in the hopefully-capable hands of Isetta restorer Ron Krause in PA. Ron said that he would take “a few weeks” to rebuild my crankshaft. I wasn’t exactly sitting around waiting for the phone to ring; I resumed work on the chassis, and as we saw in Chapter 8, got it up onto its two front tires again.

Sure enough, after a few weeks, Ron Krause called. My rebuilt crank/conrod was ready. I asked him if I could drop off a second one. He said he wasn’t one to turn down business. I drove to Emmaus once more, to pick up one assembly, and drop off another. I was becoming a regular. After a few days, Ron got back to me, stating that there was a problem. It seemed that BMW used both aluminum and steel connecting rods. The aluminum rods were notoriously weak. My second assembly used an aluminum rod, and it wasn’t rebuildable. Ron said that he could offer me an exchange unit for the same price. It wouldn’t be original to my car, but for such an internal part, it didn’t matter. I told him that I would go that route. He said he would have it ready for me in a few weeks.

With one rebuilt crankshaft in hand, I could begin reassembly of an engine. Of course, as the repair guides love to state, “installation is the reverse of removal”, so the crankcase needed to be cooked again. But first, the bare case was cleaned as best as possible using solvents, was given an abrasive cleaning with a wire wheel in an electric drill, and was then painted with high-temperature aluminum paint out of a rattle can (as the store-bought spray paints are derisively called). In today’s world of high-end, no-expense-spared restorations, this kind of approach would be looked at as amateurish at best, and below-standard at worst. However, this was what I could afford while still keeping to a DIY standard. My Isetta was SUPPOSED to be a hobbyist restoration.

Engine case was cleaned using simple wire brush chucked into drill

Allowing the paint to dry, I waited for an evening when my wife was not home, and turned on the kitchen oven to 400F. I put the crankcase in the oven and waited for 20 minutes. Oven mitts at the ready, I pulled out the superhot case, ran downstairs, picked up the crank/conrod assembly, and reinserted it. It went in like the book said it would. It was one of those moments in the journey where the progress felt profound.

Case is painted, crank ready to go back in

With the crankshaft back in place, the front of the engine could be reassembled. New timing chain, tensioner, and bearings were fitted. The camshaft was reinstalled, and new seals were used on the front of both crank and cam. The oil pump was reinstalled, and the oil pan was bolted in place, but not before hand-cutting an extra-thick cork gasket. John Jensen pointed out that when full, the engine oil is at a level ABOVE the oil pan gasket. I did not want this thing to leak if I could help it, so the cork gasket got silicone sealer on both sides, making for a nice sandwich between the crankcase and oil pan.



Two cylinder barrels, one unpainted, one cleaned and paintted



The cylinder barrels, surprisingly, did not show signs of broken fins. The two barrels were measured and were not out of spec. I bought a “small engine hone”, one designed for lawn mowers, and gave each barrel a light honing. These were cast iron and were painted with the appropriate paint. Pistons were reused (again, after measurements determined they were OK), and were fitted with new rings. Next in line: the cylinder head(s). I needed a good machine shop for that.

Lower end is essentially back together

While waiting for crank #2, and while researching machine shops, I grabbed the next part in line: the four-speed manual transmission. Of course, I had two, and from the outside, they looked identical. I chose one and ran with it. The other would be saved for my step-son. The transmission could be mounted to the same wooden engine stand as was used for the engine, once a few extra mounting holes were drilled (into the stand, not the tranny).

Two transmissions, identical except one on right has driveshaft attached (top)

(It has long been folklore in Isetta circles that their transmissions lack a reverse gear. I believe this bit of “fake news” came about because of the drivetrain’s motorcycle origins. However this falsehood began, it is simply not true. All Isetta manual transmissions were four-speed, fully synchronized on all forward speeds, with a reverse gear. A very, very, small number of Isettas were equipped with the Saxomat semi-automatic transmission.)

With cover off, it was a relief to see no broken gears; note roller bearings and shims



Transmission mounted to same wooden stand as used for engines

I had never rebuilt any kind of transmission before, manual or automatic. As a tech, I had replaced clutches and shifter mechanisms, and had serviced valve bodies, so it wasn’t something I feared. Here again, the John Jensen Isetta Restoration book was the go-to publication. The tranny, like much of the drivetrain, relied on roller bearings. Provided that no gears were broken, a rebuild consisted of replacing the bearings, seals and gaskets.

Once the front cover was off, the contrast with the innards compared to the engines’ was striking. Of course, transmissions do not normally circulate combustion by-products among their moving parts. The initial inspection showed clean and intact gears riding in rather clean oil.

This gearbox was conventional in using three shafts: input, counter, and output. Each shaft was labeled as it was removed (they looked awfully similar outside the case). Roller bearings were standard metric sizes. The Jensen book provided the dimensions, and I was able to procure SKF bearings locally. (More about SKF and its connection to a certain Swedish car company is below under ‘FUN FACT OF THE WEEK’.)

Transmission case and covers, ready for paint

As was done with the crankcase, the transmission case and cover were cleaned, abraded, and painted. The three shafts were reinstalled into the freshly painted case.  I made my own gaskets for the covers, and all seams that needed to seal against oil were slathered with copper goop. Jensen warned that the Isetta drivetrain, with its aluminum mating surfaces, could be a real leaker.

Transmission almost done except for cover

Motivated by my success with the transmission, I continued to the rear axle assembly. Let’s again dispense with a so-called fact spewed by the know-it-alls: “Isettas have only three wheels, with two in the front and one in the back”. Some have stretched this yarn to include the outrageous idea that it was the rear wheel that did the steering.

Here’s the truth: ALL U.S. spec Isettas had four wheels and tires (as did the original design). When viewing the car from the rear, it could appear that there was only one rear wheel, as the two rear wheels were only 20 inches apart. They rode on a solid axle, without a differential. This meant that there was no “differential action” on turns. (In a turn, the inner wheels travel a shorter distance than the outer wheels. A differential allows each rear wheel to rotate at a different speed to account for this.) In an Isetta, this lack of differential action meant that there was some tire scrub in turns, hardly noticeable to the driver when 13 horsepower are providing motive power.



Unlike the transmission rumor, though, there was a nugget of truth regarding the 3-wheelers. In Great Britain, Isettas were built locally under license (as they were in France, Brazil, and other countries). The UK had a motor-vehicle structure that labeled 3-wheeled vehicles as motorcycles. Such vehicles only required a motorcycle license to operate on public roads, and were taxed at a lower rate. The Brits took advantage of these loopholes and created a 3-wheeled version of the Isetta. I’ve never seen one in the metal, but in photos, it looks like the thing is about to tip over. And you thought the versions with two rear tires only 20 inches apart looked unstable….



Chain reinstalled into painted case

The Isetta drivetrain included the following: a one-cylinder engine, with a four-speed transmission bolted directly to it; an extremely short driveshaft, with a Giubo joint at each end to allow for flex, connecting the gearbox to the rear axle; and a rear axle assembly with a chain drive enclosed in an aluminum housing. The chain drove a solid rear axle, with a 10-inch wheel & tire assembly at each end. The solid axle meant that only one brake drum was needed at the rear. Overall, this drivetrain was light, took up little room, and easily fit into the rear of the chassis.

My chaincase was opened, disassembled, and cleaned. Roller bearings were replaced, and the bare case was sprayed with the same high-temp aluminum paint as was used on the engine and gearbox. The chain showed no sign of wear, so I reused it. The case was reassembled, with the freshly painted black brake backing plate making a nice contrast to the silver. The quarter-elliptic leaf springs were treated to the same routine: disassemble, clean, paint, and reassemble. I became aware that except for complex assemblies like the engine, much of the remainder of my car was undamaged, and suffered only from disuse and poor storage.

Depending on the state of my garage (which housed my ’67 Dodge Dart convertible, and also was used for various house projects), the Isetta bodies would occasionally need to be moved out of the garage, then back into the garage. The bodyshell with glass can easily be lifted by three people. It became an inside joke among my neighbors when I came knocking, asking for their help to relocate a body.

Body on its way back into the garage

All of this drivetrain work took place throughout 1993 and 1994. What was left? As mentioned earlier,  I was on the hunt for a qualified machine shop for the cylinder heads. The finished rear axle meant that the chassis was close to rolling on its own four wheels, after which, there were still brake lines and pedal connections to contend with. Even though I didn’t plan to perform my own body and paint work, I thought that I could restore the driver’s controls (steering wheel & column, pedal assembly, and other interior components) myself.

The year 1993 also afforded me the chance to attend two different car shows featuring Isettas. One show was the now-famous Bubble Car Show in Laurel MD, where I had been in attendance in the early ‘80s. I got reacquainted with my microcar buddy John Malcolm there, and followed up my visit by placing a parts order with him.

Later that year, and a bit closer to home, the annual TVR car show, held in western NJ, included a special class for microcars (what connection they have to TVRs is lost on me, but it was nice to find Isettas within a 45-minute drive). Both shows provided further motivation to keep pushing myself.

The goal hadn’t changed: “The Isetta will drive in ‘95”. The unanswered question remained: “While I’m making progress, is the progress moving fast enough?”

Next time in the Isetta Saga: further engine progress is made, and we host the first of what will be several parties, to celebrate a certain milestone. It’s kind of corny, but hey, any excuse to pop open a bottle of champagne.

All photographs copyright © 2018 Richard A. Reina. Photos may not be copied or reproduced without express written permission.



FUN FACT OF THE WEEK:

SKF, a leading manufacturer of ball bearings, was founded in Sweden in 1907. According to Wikipedia, they are the largest bearing manufacturer in the world. In the 1920s, SKF decided to begin automobile manufacturing. For the car’s name, the company used a word for which they already held the trademark. The word is Latin for “I roll” (as in, roller bearings). That Latin word is “Volvo”.



The Isetta Saga, Chapter 8: Focus on the Front End

In Chapter 7, after figuring out how to take an Isetta engine apart, I did exactly that. With the help of my new Isetta buddy Ron Krause, it was hoped that someday I’d figure out how to get it all back together too.

This chapter of the Isetta Saga quite literally ties together all the pieces that make up the front end of the chassis. We get our first glimpse of something that looks like it might drive down the road (you’ll need to squint).


We had seen in Chapter 6 that the restoration work really began with stripping, cleaning, and repainting the bare chassis. Part of that process included removing all ancillary components from it: springs, shocks, brakes, and cabling. However, moving onto engine work didn’t mean that progress had ceased on the chassis. Parallel progress was being made which would get the chassis back on its four wheels again.

As a way to keep the project moving forward, I would work on several sub-sections of the car at a time. While I was waiting for the paint to dry on Part A, I was disassembling Part B. And while searching for replacements for the broken bits for Part C, Part D was soaking in Liquid Wrench because its bolts wouldn’t bust loose. And so on. Keeping this from disintegrating into a disorganized mess was helped by my infatuations with labeling and photographing everything. Hence, we have the photos I can share with you some 25 years later.


  • SUSPENSION

The Isetta’s suspension was somewhat conventional, employing coil springs over tube shocks encased in housings (a crude coilover) in the front, and quarter-elliptic leaf springs in the rear. In disassembling the front end, I noted that the springs and shocks seemed to be in good shape. The fact that there were no available replacements may have played a small role in my determination that these parts were “serviceable” and could be reused.

The springs had a 1957 date code on them, which meant they were factory original. They looked good, and I would guess that a 770 lb. car wouldn’t exert that much wear and tear on them.

Date code looks like 21.10.57 – late ’57 production car?

One tricky part to the front end were the knuckles, which were designed to hold a small quantity of high-viscosity oil in them. The moveable parts of the suspension, which were the spindle and the swing arm, were lubricated by this oil. The fluid was held in place via metric-sized o-rings. Since I found ZERO trace of existing o-rings upon disassembly, I knew replacements were needed, and I was able to source the correct-size o-rings from one of my suppliers.


  • WHEELS

Most (but not all) Isettas made use of two-piece split rims, with the wheel halves held together with simple nuts and bolts. This arrangement required the use of inner tubes. One of my parts sources had the correct 10” tubes with the correct 90 degree valve stem. Although I had planned to let a professional body shop paint the wheels, I thought I could save some costs by sand-blasting them myself. Jorgen Carlsson, a Swedish engineer I met at work, happened to have his own sand-blasting cabinet, and lived not far from the office. How convenient. I loaded up the wheel pieces and headed over at the end of the work day.

Dirty wheel halves in the back of my Volvo 245

Having never used a sand-blaster before, I imagined the process as similar to painting: aim the nozzle, squeeze the trigger, and viola, old paint and rust are wiped away. Well, not quite as simple as spraying on a new coat.

Ola Paulsson and Jorgen Carlsson

While the blast of sand does bring the part down to bare metal, it is a very slow process. The gun must linger on the spot for several moments, after which, there is only a small area cleaned. You then aim for the adjacent spot, as you clean off an area maybe the size of a quarter every few minutes.

Preblasted wheels on left; blasted wheels on right

There were 10 wheel halves (including the spare), and each piece needed to have both sides worked. I thought I’d be there for an hour or two; my recollection is that it was a very late night for me. Once I started, I felt I needed to finish it, and in actuality, the whole job probably took 4 or 5 hours. Jorgen was extremely patient with me, letting me stay until my work was done.

Took 5 hours, but all wheels are cleaned down to bare steel

The newly-blasted wheels were taken to a body shop local to the office, with my instructions to “paint them white”. They did, and I picked them up later that week.

Freshly painted wheels are bright white

Next came a very controversial decision among my friends: were the wheel bolts supposed to show the BOLT HEAD or the NUT to the outside of the wheel? Remember that I had two chassis, and two sets of wheels. As I had received them, ALL the wheel hardware showed the NUT on the outside. There was no proof that the factory assembled them that way; but I had a hard time believing that all these wheels had had the hardware reversed. That’s how I reassembled the wheels, in spite of the razzing I got from more than one friendly “expert”.


  • TIRES

When BMW sold new Isettas in the mid-to-late ‘50s, they left the factory with 4.80 x 10 bias-ply tires. Radial tires were around in the 1950s, but very few cars were so equipped. While I certainly had taken a strong turn toward originality for my restoration, I also intended to drive this car, and based on that, I was wanted to install radial tires, for safety, handling, and comfort, judges be damned. The equivalent size was a 145SR-10, and Michelin manufactured a ZX tire in that size. A contact inside Volvo was able to get me a set of 5 Michelins at a very favorable price (my handwritten notes say that I paid $26.67 per tire). The split rims meant that I could mount the tires myself.

Brand new Michelin ZX, 145SR10, label still attached

  • IT STARTS TO COME TOGETHER

The front suspension was easy to put back together (I made my own coil spring compressor from some threaded rod and steel strapping), and once that was assembled, two of the completed wheel-and-tire assemblies bolted right up to the chassis.

OH YEAH!

The grin on my face says it all: with about two years of somewhat sporadic work behind me, THIS moment felt like a giant leap: the chassis was again rolling, if only on its front wheels. The back half of the car was still a challenge, as that is where the drivetrain sat: even with the engine work coming along, I still had to get to the gearbox, rear axle, and rear suspension. But progress is progress, and as I gaze at this photo again, I’m reminded how this milestone pushed me to keep at it.

In our next installment (what am I up to, Chapter 54?), two engines get built up courtesy of the rebuilt cranks of Ron Krause; and the rest of the drivetrain is tackled, as the man with the toolbox rebuilds his first-ever manual transmission. Hey, it’s just a box full of gears.

All photographs copyright © 2018 Richard A. Reina. Photos may not be copied or reproduced without express written permission.



FUN FACT OF THE WEEK:

The Michelin Tire Company, founded by brothers Edouard and Andre Michelin, is responsible for two major tire innovations: the invention of the removable pneumatic tire in 1891 (prior to this, pneumatic tires were glued to the rims and were difficult or impossible to repair); and the invention of the radial tire in 1946.

The radial tire gained almost immediate widespread adoption in Europe. But the U.S. car makers stubbornly stuck with bias-ply tires (U.S. market share of bias-ply tires in 1967 was 87%). That changed when in 1968, Michelin opened its first U.S. sales office, and Consumer Reports magazine reported on the superiority of the radial tire.
